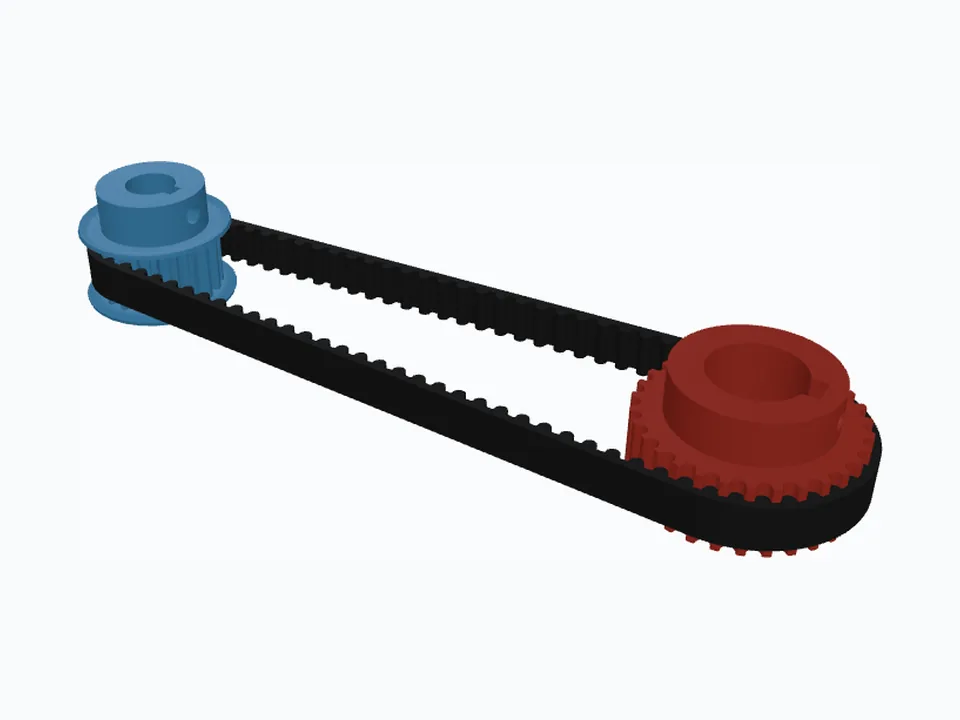

Built like a machined part: ISO 773 keyways sized to 12 mm and 20 mm shafts, M5 set screws to lock them, and flanges drawn as bent metal plates instead of printed rims.

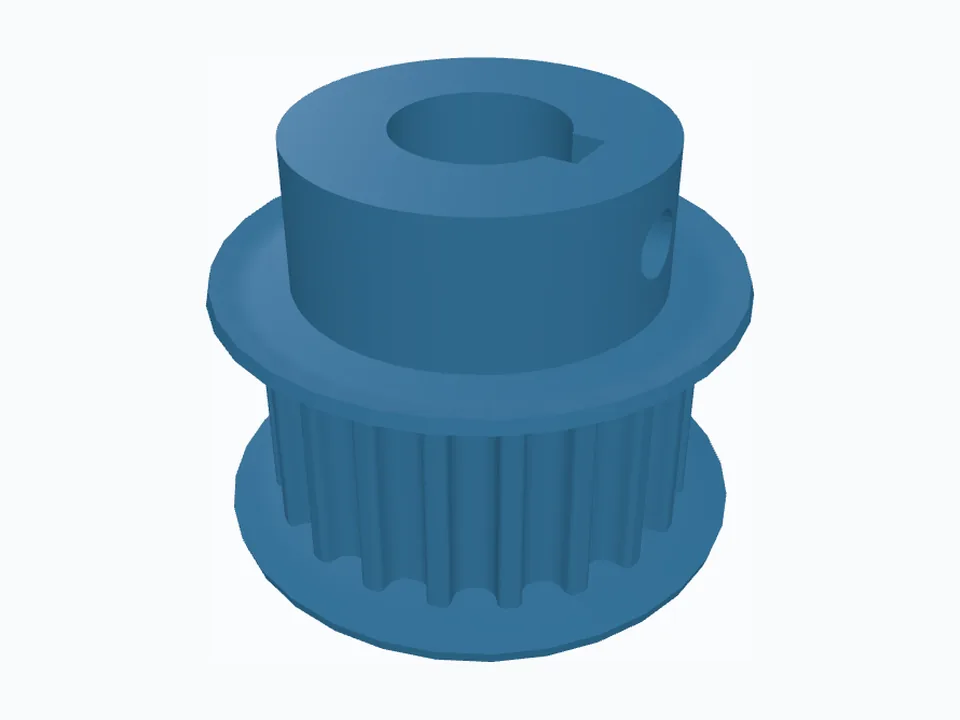

Using the CheapCAD Tools connector, design a two-pulley timing belt drive: HTD 5M belt, about 150 mm between centres, M5 set screws in both hubs. Pulley 1: 20 teeth, 12 mm bore with a 4 mm wide, 2 mm deep keyway, a hub 26 mm across and 10 mm tall, and flanges drawn as metal plates. Pulley 2: 30 teeth, 20 mm bore with a 6 mm wide, 3.1 mm deep keyway, a hub 34 mm across and 10 mm tall. Check the design, apply any Auto-fix it suggests, then export both pulleys as STL and give me the download link.
Paste it into Claude, ChatGPT or any AI app with the CheapCAD Tools connector, and it designs this drive with you, checks it and hands you the files. How to connect your AI.
HTD-5M-20T+flange.stl — pulley 1, 20 teethHTD-5M-30T-P2.stl — pulley 2, 30 teethFree STLs are CC BY 4.0, printed size without print compensation. Open the design to change anything, tune the fit for your printer, or download STEP, DXF, SVG and the belt.
| Pulley 1 | Pulley 2 | |
|---|---|---|
| Pitch diameter | 31.83 mm | 47.75 mm |
| Outside diameter | 30.69 mm | 46.60 mm |
| Root diameter | 26.53 mm | 42.44 mm |
| Groove depth | 2.08 mm | 2.08 mm |
| Pitch line differential | 0.57 mm | 0.57 mm |
| Belt width | 10.00 mm | 10.00 mm |
| Face width (belt + clearance) | 16.00 mm | 16.00 mm |
| Minimum face width | 12.00 mm | 16.00 mm |
| Flange outside diameter | 36.69 mm | — |
| Flange past the OD | 3.00 mm | — |
| Minimum flange height | 2.65 mm | — |
| Belt | 86 teeth · 430.00 mm | |
| Centre distance | 152.29 mm | |
| Drive ratio | 20 : 30 · 1 : 1.5 | |
Read from the generator's Dimensions panel for this design, which opens with no warnings.
